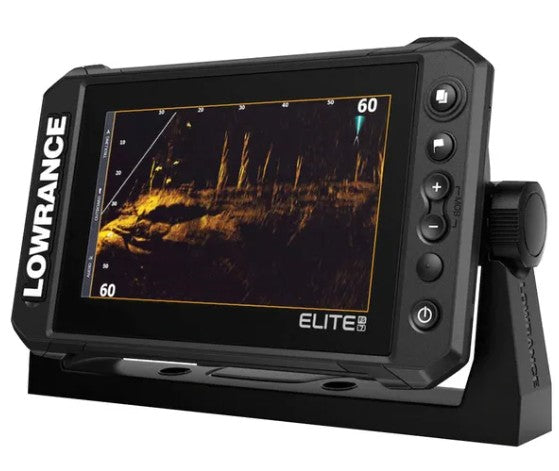

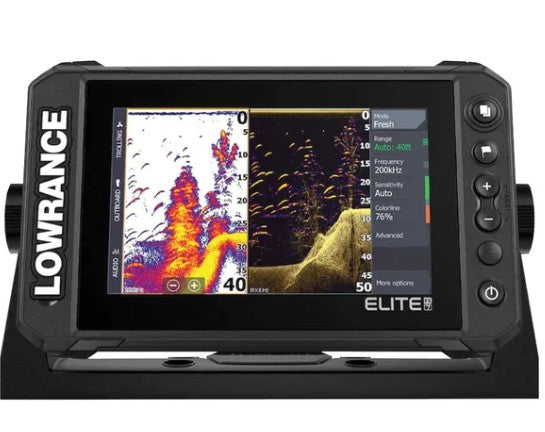

ELITE FS 9 WITH ACTIVE IMAGING 3-IN-1 TRANSDUCER (AUS/NZ)

The Elite Fishing System (FS) gives you access to the full line-up of Lowrance fishfinding tools including ActiveTarget™ Live Sonar, Active Imaging™ and preloaded C-MAP® AUS/NZ Enhanced Embedded charts to help you make the most of your time on the water.

Features

• ActiveTarget™ Live Sonar ready
• Active Imaging 3-in-1 ready
• FishReveal™
• Preloaded C-MAP Enhanced Embedded charts with high resolution inland and coastal coverage, plus mapping options including C-MAP, Navionics® and more
• C-MAP® Easy Routing, Navionics® Autorouting capability
• C-MAP Genesis Live onscreen mapping
• High-resolution multi-touch touchscreen
• Integrated wireless, NMEA 2000® and Ethernet connectivity
• Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

Specifications

• Screen Brightness: >1200 nits
• SD Card Storage: 1 micro SD card up to 32GB
• Ethernet Ports: 1 x 100Mbit
• Warranty Period: 1 Year + 4 additional years of upgrade options totalling 5 years
• Update rate: 10 Hz
• GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
• Power Consumption max: 2.0A @ 13VDC with backlight on full
• Power Consumption typical: 2.0A @ 13VDC with backlight on full
• Power Consumption min: 2.0A @ 13VDC with backlight on full
• SD Card Storage: 1 micro SD card up to 32GB
• Ethernet Port: 1 virtual ethernet port
• Warranty Period: 1 Year + 4 additional years of upgrade options totalling 5 years
• Update rate: 10 Hz
• GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
• Shock Vibration: 100,000 cycles of 20 G
• Compass Safe: 12" (300mm)
• Screen Brightness: 1200 nits
• Supply Voltage: 12v DC (10.8-17VDC)
• GPS Receiver Channels: 16
• NMEA 2000 Connectivity: 1x Micro-C
• Weight: 2.7 lbs (1.2 kg)
• Position Accuracy: 20m RMS
• Waypoints, Routes, Tracks: 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
• Time to First Fix: 30s
• Recommended Fuse Rating: 3A
• Storage Temperature Range (-20°C to 60°C )
• Radar compatibility: 4G (Broadband) 3G (Broadband) Halo20 (Pulse Compression Dome Radar) Halo20+ (Pulse Compression Dome Radar) Halo24 (Pulse Compression Dome Radar)
• Operating Temperature Range (-15°C to 55°C )
• Humidity: 60°C, 95% relative humidity (RH) for 18 hours
• Viewing Angles: 50° top60°bottom70° left/right
• Display Resolution: 800x480
• AIS: AIS Chart overlay. Target vessel details.
• Charts supported: C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
• Cartography included: C-MAP Contour + AUS/NZ
• Mounting Type: Gimbal Bracket or Dash Flush Mount
• Bluetooth: Integrated Bluetooth 4.0 with support for Bluetooth Classic
• Sonar Compatibility: Integrated: CHIRPBroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:StructureScan
• Item Connectivity WiFi: Internal 802.11b/g/n
• Waterproof rating: IPX7 with card door closed
• Weather: None
• Internal Storage: None
• PC Connectivity: None
• Video: None
• Multimedia: None
• Digital Switching: None
• Backlight Colour: Pure White LED
• Interface: TouchscreenZoom +/-MOB = (+/- combined)PagesWaypointLight/Power

 What's in the box?

• Elite FS™ 9 Suncover
• HDS-9 LIVE / Elite FS™ 9 Bracket
• HDS/Elite/Hook/Mark Power Only Cable
• FUSE-1 Set of 3 x 3-amp Fuses

Active Imaging 3-in-1 Transducer
